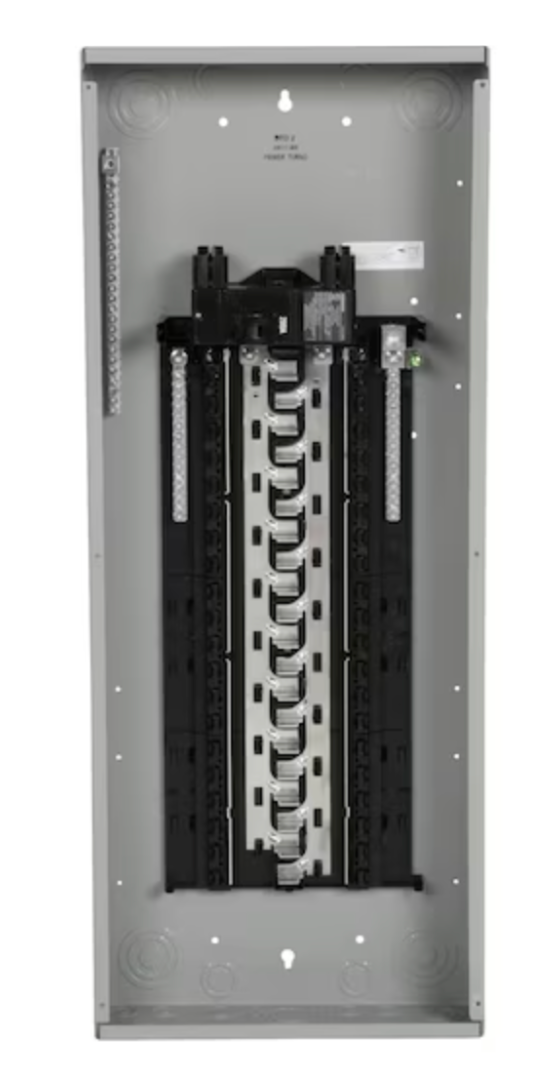

Description
Key Features and Specifications:
- Plug-On Neutral Design: Allows for faster installation by eliminating the need for pigtails.
- Capacity: 200 Amp, 40-Space, 40-Circuit (40/40).
- Bus Material: Durable aluminum bus.
- Voltage/Phase: 120/240V AC, 1-phase 3-wire.
- Interrupt Rating: 22,000 AIC (22 kAIC).
- Enclosure: NEMA 1 (Indoor), Surface/Flush mount compatible.
- Compatibility: Designed for Siemens QP breakers.
- Wiring Space: Provides over 4 inches of wire bending space.
- Dimensions: Approximately 15.5 in W x 4.45 in D x 37.13 in H.
- Ground Bar: Includes one factory-installed ground bar.
