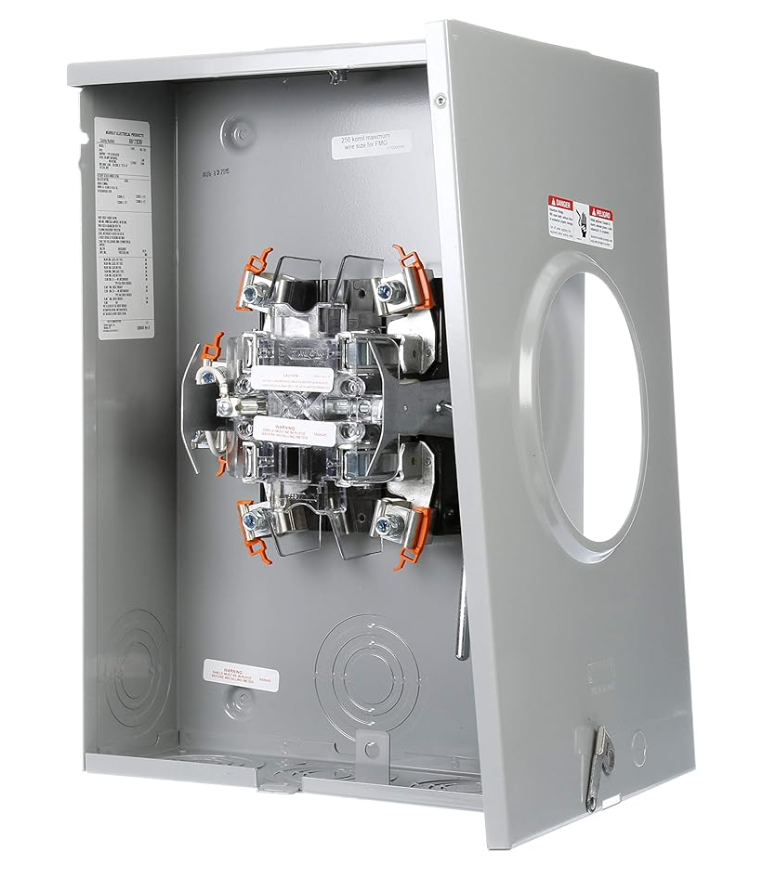

Description
Key Features and Specifications:
- Amperage: 200 Amp continuous duty.
- Voltage: 600 VAC maximum.
- Jaws: 5-Jaw (suitable for single-phase 3-wire service).
- Bypass: 100% rated lever bypass with clamping action.
- Feed: Overhead or Underground.
- Cover Type: Ringless.
- Mounting: Surface mount (NEMA 3R outdoor rated).
- Wire Size: 6 AWG to 350 kcmil.
- Dimensions: Approximately 20.5" H x 13.5" W x 6.1" D.
- Compatibility: Uses RX type hubs.
Important Notes:
- This is a "heavy-duty" socket with 320-amp rated bypass blades.
- It is vital to confirm approval with the local utility before installation.
- Commonly used for service upgrades, new construction, and, in some cases, with solar installations.
