Description
SPD - Type 1 ST-XH Series 240/120V L-L VPR 600V L-L MCOV 150V 50 kA LED Ind
Surge-Trap® STXH is listed UL Type 1 and fully compliant with UL1449 5th Edition, suitable for any 120/240VAC split phase application. Equipped with TPMOV® technology, stands out as the safest option in its class. Compact design, combined with superior performance and reliability, makes it particularly suited for HVAC systems and direct attachment to air conditioning disconnect switches.
FEATURES/BENEFITS
-
Mersen TPMOV Technology – does not require additional overcurrent protection
-

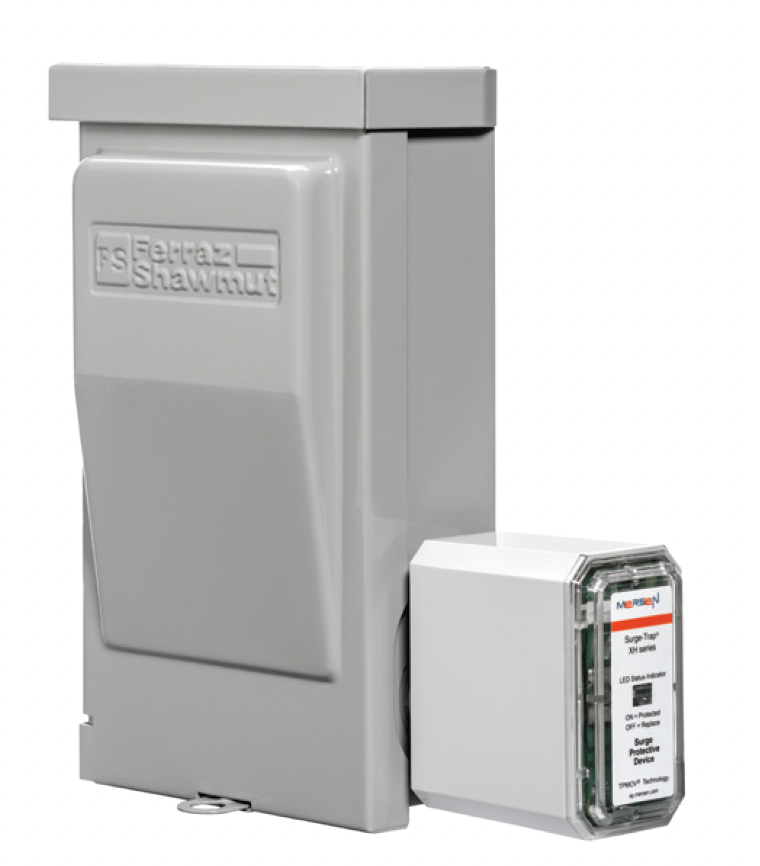

Compact footprint for seamless integration with AC Disconnect Switches
-
NEMA 4X enclosure for outdoor or indoor use
-

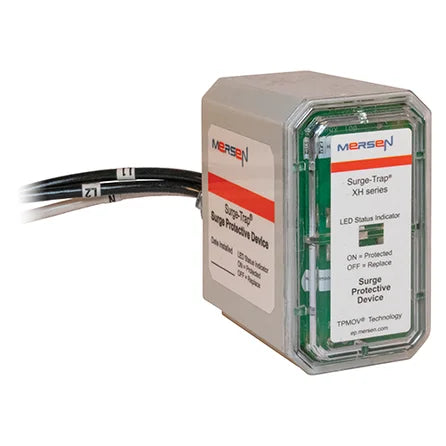

Fits 1/2" knockouts with 18" leads for easy installation
-
Up to 3 modes of protection (L-N, L-L, and L-G)
-

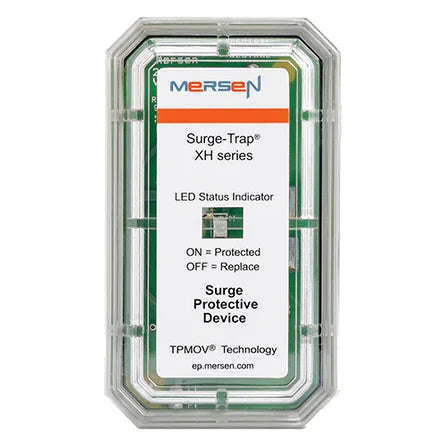

Bright LED status indicator, visible from side profile through clear cover
-
3-year manufacturer’s warranty, plus up to $25k connected equipment warranty (for details see warranty statement)
APPLICATIONS
• Residential Panels
• HVAC systems
• Pool and Spa equipmentAPPROVALS/STANDARDS
-
ANSI/UL 1449 5th Edition, Type 1 SPD, File E210793
-
CSA C22.2, Type 1 SPD
-
ANSI/IEEE C62.41.1, C62.41.2, C62.45
-
UL96A Lightning Protection
-
RoHS Compliant
